Jgc-40 belt weighing feeder

Jgc-40 belt weighing feeder:
Jgc40 series belt weighing feeder is a special dynamic measuring equipment for continuous weighing, batch
feeding and batching of various bulk, granular, powdery and other materials. It is widely used in building
materials, cement, chemical industry, coal, mining, ceramics, glass, metallurgy, grain, chemical fertilizer, feed,
port, electric power, coking, environmental protection and other industries.

•  Static metering error :≤0.2%
•   Dynamic cumulative error:  ≤1%
•   Conveying capacity :  1-700（t/h）
•  Conveying distance:  10（m）
•  Control accuracy is better than 0.1%
• Sensitivity better than 1%

Equipment structure ：

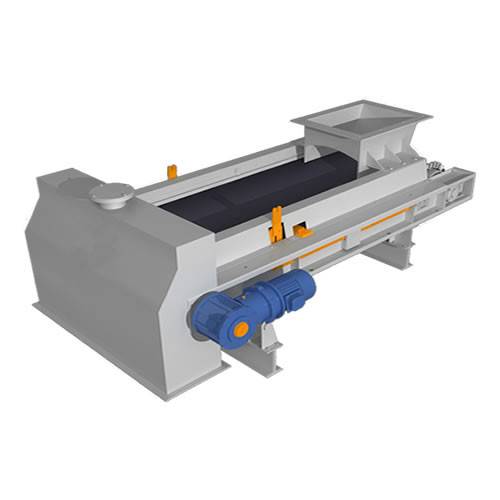

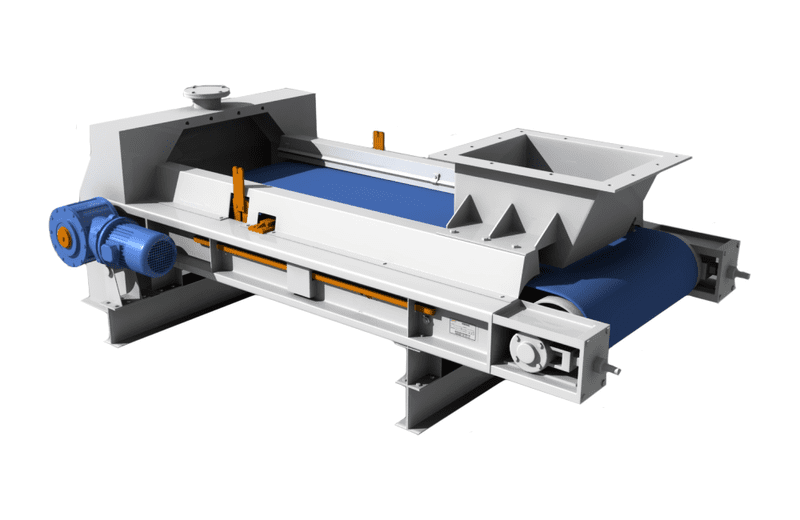

The belt weighing feeder is composed of transmission device, frame, sensor, distributor, tensioning device,
belt and other parts,

The transmission device is composed of a motor, a reducer and components connected to the drum shell,
which drives the drum to rotate and pull the belt.

The frame is used to support each assembly and transmission system, which is welded by profile.
Sensor is an important device used to sense the weight of materials on the belt.The distributor is
used to adjust the material height on the belt surface.

The tensioning device is used to adjust the belt tightness and prevent belt deviation.Belts are used
to drive and drag materials.

Product features

• Sn-ics dynamic weighing technology, calibration accuracy ≤± 0.2%, long-term use accuracy ≤± 0.5;
• The weighing instrument with high precision, high performance and high reliability specially designed
• for the feeder has advanced control algorithm and advanced anti-interference technology;
• High quality accessories are selected, and the weighing sensor adopts the famous brand imported from
• American Shiquan celtron;
• The speed sensor core is the top brand of OMRON Omron in Japan;
• It can be customized according to the process characteristics and on-site environment;
• The unique electronic automatic calibration or code hanging calibration function can verify the measurement
• accuracy at any time
• The unique electronic automatic calibration or code hanging calibration function can verify the measurement
• accuracy at any time

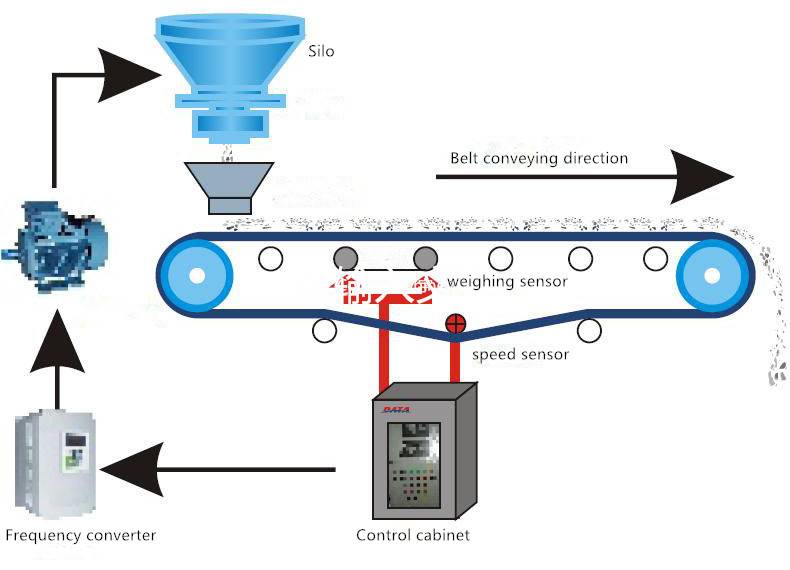

working principle

Simultaneous interpreting the weight signals of the material from the belt and the speed signal of the belt running
to the micro controller.Automatically calculate the instantaneous flow of materials. By continuously comparing the
set flow with the actual flow,So as to adjust the running speed of the belt and keep the actual material flow at the set
flow value.
