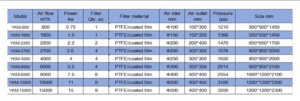

| Model | YKM800,YKM-1600,YKM-2200,YKM-2700,YKM-3600,YKM-4500,YKM-6000 |
|---|---|
| Air Volume | 800,1600,2200,2700,3600,4500,6000 m3/h |
| Power | 0.75,1.5,2.2,3.0,4.0,5.5,7.5 KW |
| Filter Cartridge Qty. | 1, 2, 3, 4, 4, 5, 5 pcs |
| Air Inlet Diameter | 100, 100, 200, 250, 300, 300, 300mm |
| Air Outlet Diameter | 210*210, 210*210, 260*220, 290*250, 280*250, 330*290, 360*320mm |
| Pressure | 0.6-0.8 |
| Dimension | 500*500*1350, 500*500*1350, 800*800*1850, 800*800*1900, 900*900*1950, 980*980*2020, 980*980*2100mm |
Raw material–Sheetmetal cut–Sheet bending–Sheet welding–Spray paint–Assembly–Filter cartridge–Electronic installation– Packing

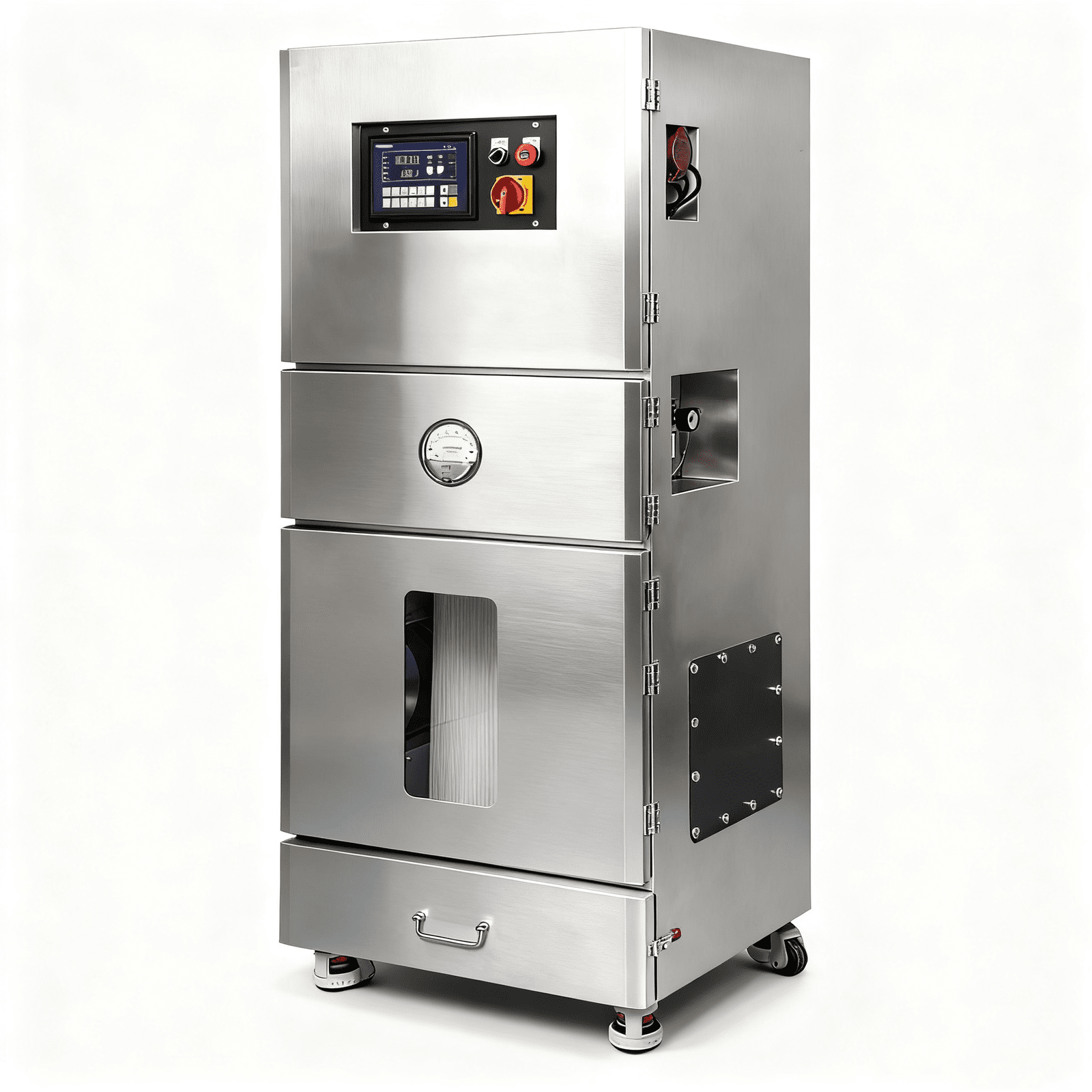

The YORK filter cartridge type dust collector is a new and efficient dry dust removal equipment,
which is suitable for
purifying fine and dry non fiber dust.
The machine creat negative pressure indoor, the dusty air flow enters the air cleaniner through the
air intake aperture.

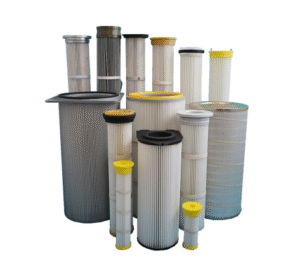

After filtering by the high efficient filter cartridge, the large dust partical will be dropped to dust collection box.
The tiny dust partical attached to filter cartridge will be shaked off(by pulse valve) to the lower part dust collecting box.
The clean air will come out from the upper part of cleaner.

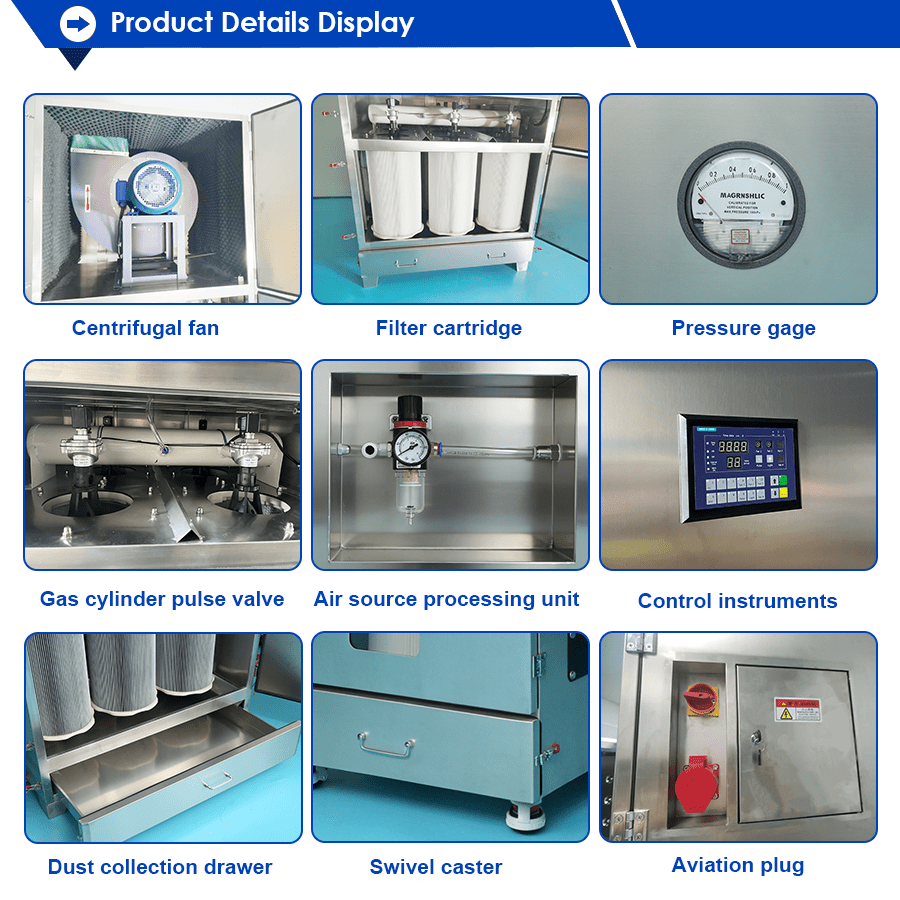

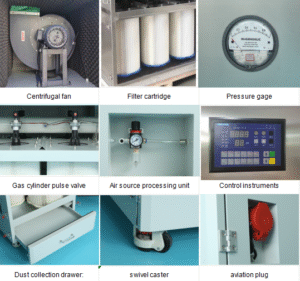

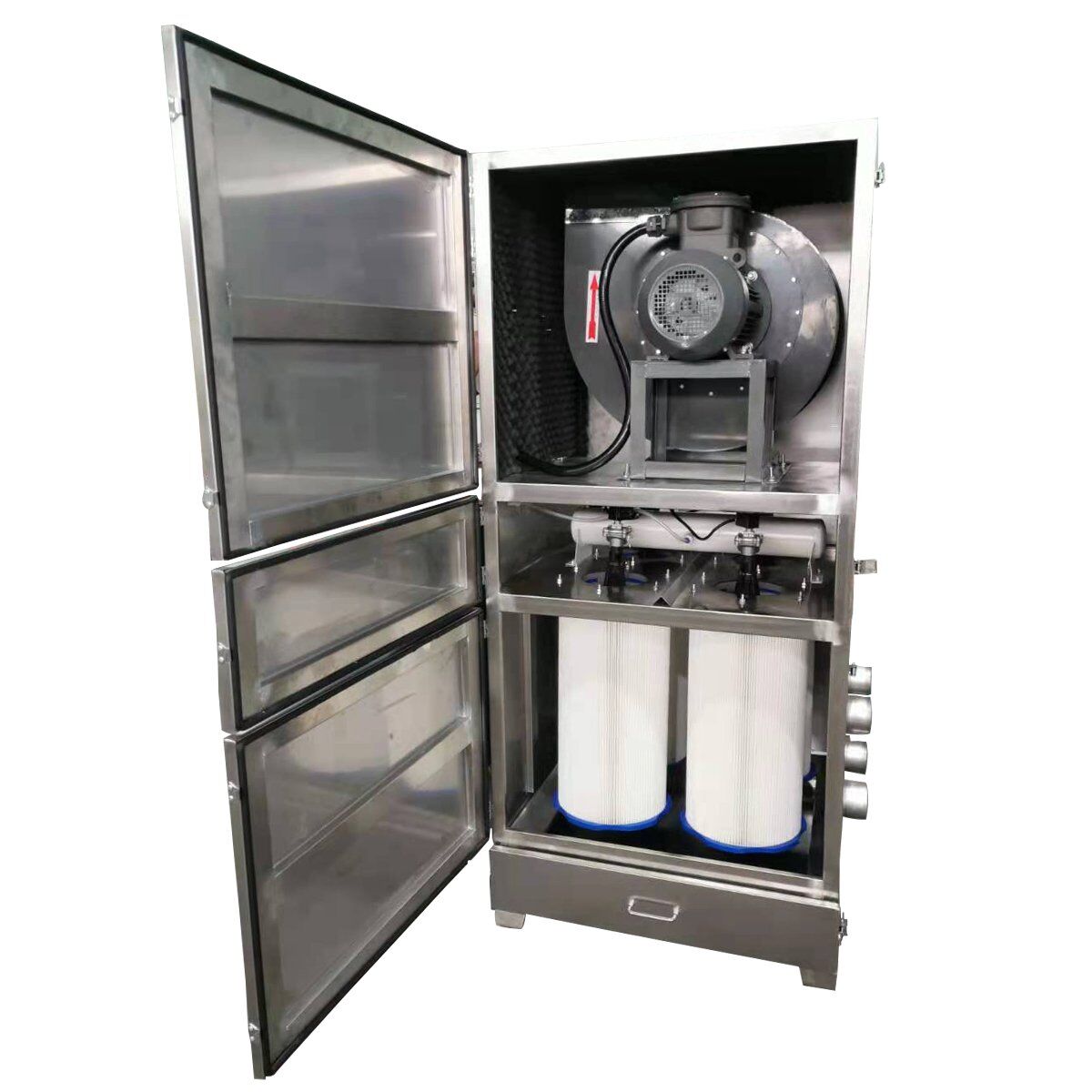

Structure of dust collector

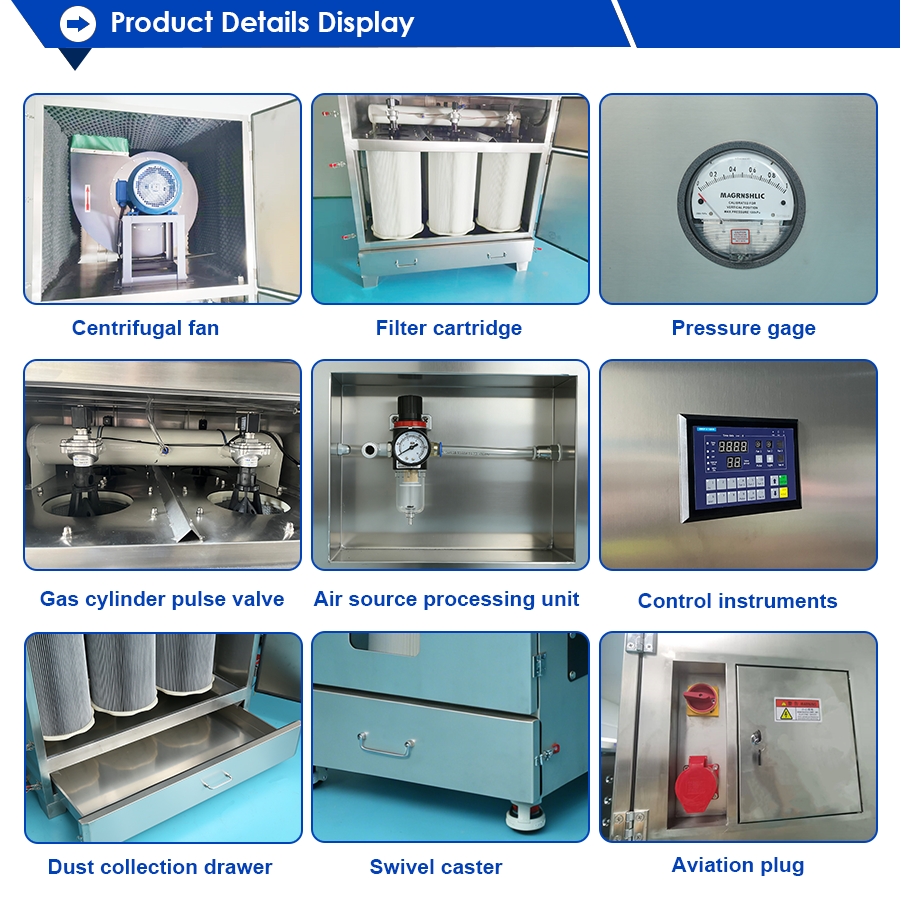

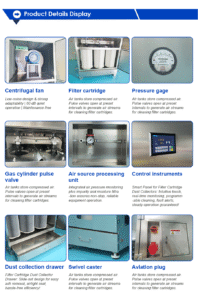

The main components include: machine frame, high efficiency filter cartridge, dust drawer combination,
low noise negative pressure fan motor, motor control Panel and so on.

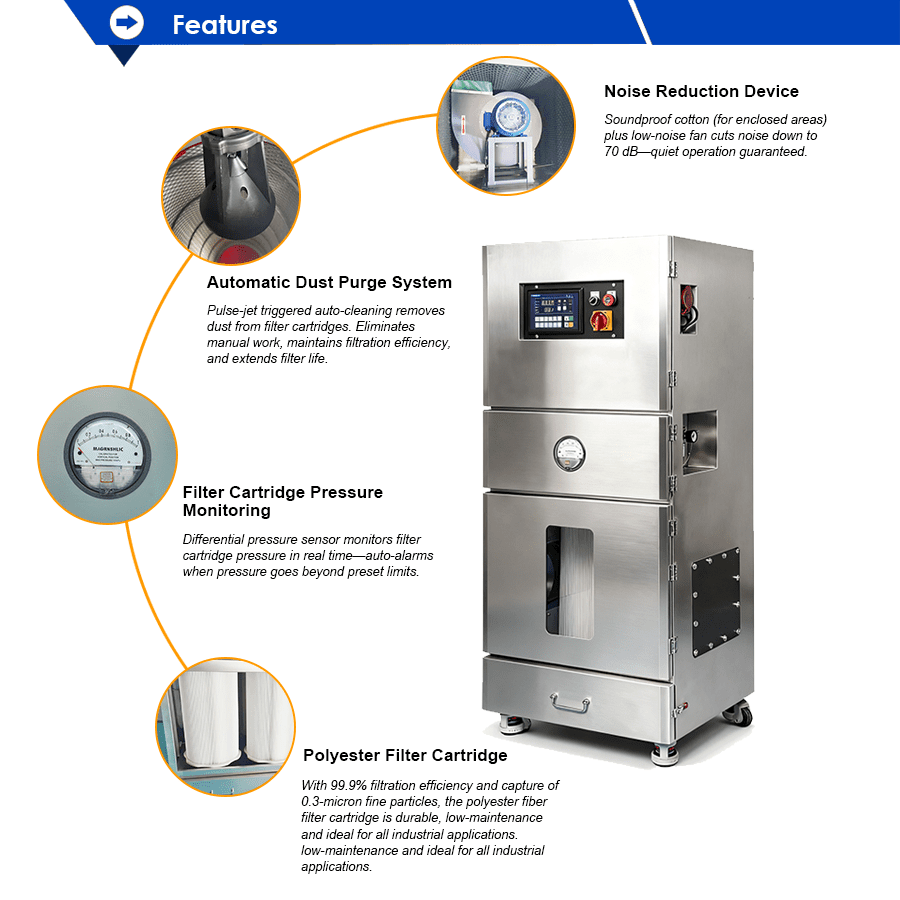

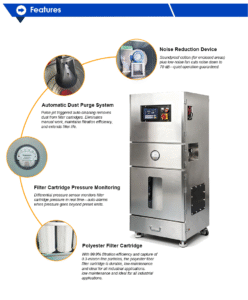

Feature
Large air volume, higher efficiency
Low energy consumption
Easy installation, less floor space
