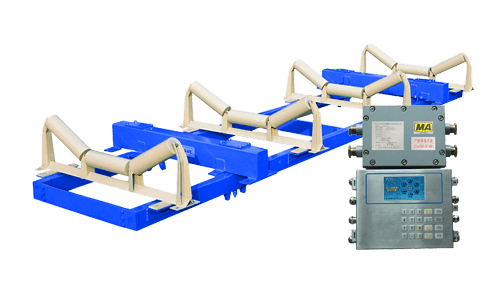

ICS-14A Electronic belt scale

Ics-14a electronic belt scale: ics-14a electronic belt scale is a four roller, fully suspended
high-precision electronic belt scale,which can meet the needs of trade settlement. This type
of belt scale is equipped with four load cells, without trunnion fulcrumand moving parts, with
lighter self weight. When weighing, it is basically not affected by its own mechanical structure,
and themaximum accuracy can reach 0.125%

Product features:

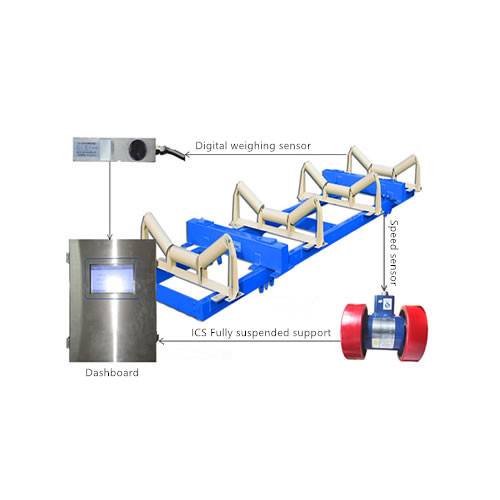

Ics-14a weighing bridge  The scale body adopts the four idler full suspension weighing
structure, which is freefrom the interference of various lateral and horizontal forces other
than non vertical forces (including the friction ofidler,the horizontal component of belt and
material operation), reduces the error of boundary effect, and the verticalforce ofsymmetrical
weight needs to be measured more quickly and accurately

Stainless steel touch screen weighing instrument :The belt scale instrument adopts
32-bit 180mhz high-speedoperation processing to ensure stable operation and calculation
accuracy, and the 16 bit DA converter ensures moreaccurate output of 4-20mA. This machine
has a large storage space. The storage output of this machine can bequeried on the current

day/ month, and the historical data can be stored and queried,

 Digital load cell :The self-developed industrial digital weighing sensor strengthens the
dynamic digital filteringfunction and adds the linear compensation function on the basis of
the original generation of digital sensors, so asto overcome the shortcomings of traditional
sensors, such as small output signal, short transmission distance andpoor anti-interference
abilit

Speed encoder: The double-sided rubber coating can effectively prevent the belt from
slipping. The carbon steel shellhas good mechanical strength, shielding and sealing. It is
suitable for outdoor installation. The brushless DC pulsegeneratordoes not need adjustment,
calibration and maintenance. The coaxial connection structure more effectivelyensures the
speedmeasurement accuracy and greatly improves the speed measurement accuracy

Product introduction： Ics-14a electronic belt scale is a four roller, fully suspended high-
precision electronic belt scale, which can meet theneeds of trade settlement. Four load
cells transmit force directly, with the highest measurement accuracy. Four idler full
suspension scale frame,eliminate the error caused by fulcrum, no trunnion fulcrum and
moving parts, and small maintenance

Working principle of belt scale
The weighing bridge is generally installed on the conveyor frame, and the material generally acts
on the idler.Through the lever principle, we transfer the weight of the idler to the weighing sensor,
which generates a voltagesignal proportional to the weight of the material;
Then the speed sensor is directly connected to the large-diameter speed measuring drum. When
the drum drivesthe belt to rotate, the speed measuring sensor will generate a series of pulse signals
proportional to the speed,which will be transmitted to the instrument,
Through integral calculation, the instantaneous material mass is obtained, and through continuous
cumulative calculation,the material mass on the whole belt is obtained, so as to achieve accurate
dynamic weighing, and finally displayed on thenstrument.

Scope of application
It is applicable to the measurement and weighing of bulk materials of all materials, such as building
materials, metallurgy,chemical industry, feed, energy, trade, transportation, agriculture and other
industries.Suitable for underground coal mines, power plants, metallurgical workshops, building
materials, chemical plants, ports,docks and other environments.
Block: coal | sand and gravel aggregate | ore | non ferrous metal particles: fertilizer | feed | quartz
sand | grain powder: cement|fly ash | lime powder | iron ore powder flake: straw | wood chips | glass
fiber others: sludge | clay | oil refining residue | hightemperature clinker and other materials.
