Ics-20A electronic belt scale

Ics-20A electronic belt scale: Ics-20 electronic belt weigher has a dynamic cumulative error of less
than ± 0.5%.It is used for weighing belt conveyors in general factories and for accurate quantitative feeding
control of crushers,coal mills, screening machines and other equipment. It can also be used for industrial
weighing process control,such as measuring production, controlling quantitative loading of products and
monitoring inventory

Product features:

Ics-20A weighing bridge：Double idler lever weighing structure, equipped with a high-precision
weighingsensor, less force transmissionlinks, simple and convenient installation. Ics-20a belt scale is
of doubleidler anddouble lever structure, andics-20b belt scale is of single idler and single lever
structure.

Stainless steel touch screen weighing instrument :The belt scale instrument adopts 32-bit
180mhz high-speedoperation processing to ensure stable operation and calculation accuracy, and
the 16 bit DA converter ensures moreaccurate output of 4-20mA. This machine has a large storage
space. The storage output of this machine can bequeried on the current day / month, and the
historical data can be stored and queried,

 Digital load cell :The self-developed industrial digital weighing sensor strengthens the dynamic
digital filteringfunction and adds the linear compensation function on the basis of the original
generation of digital sensors, so asto overcome the shortcomings of traditional sensors, such as
small output signal, short transmission distance andpoor anti-interference abilit

Speed encoder: The double-sided rubber coating can effectively prevent the belt from slipping.
The carbon steel shell has good mechanical strength, shielding and sealing. It is suitable for
outdoor installation. The brushless DC pulsegeneratordoes not need adjustment, calibration
and maintenance. The coaxial connection structure more effectivelyensures the speedmeasurement
accuracy and greatly improves the speed measurement accuracy

Product introduction：

The rod structure design adopts two pull sensors, and the outer support adopts non friction
trunnion fulcrum,which can effectively overcome the influence of eccentric load and slope on
ccuracy, and has stronger adaptabilityto the environment.The dynamic cumulative error is
≤± 0.5%, and the inclination angle of belt conveyor is ≤ 17 °, which is applicableto the weighing
of belt conveyor in general factories and the accurate quantitative feeding control of crusher,
coal mill,screening machine and other equipmentDigital or analog load cell is optional; Upper
belt trolley speed measurement, lower belt speed measurement and drumspeed measurement
can be selected.

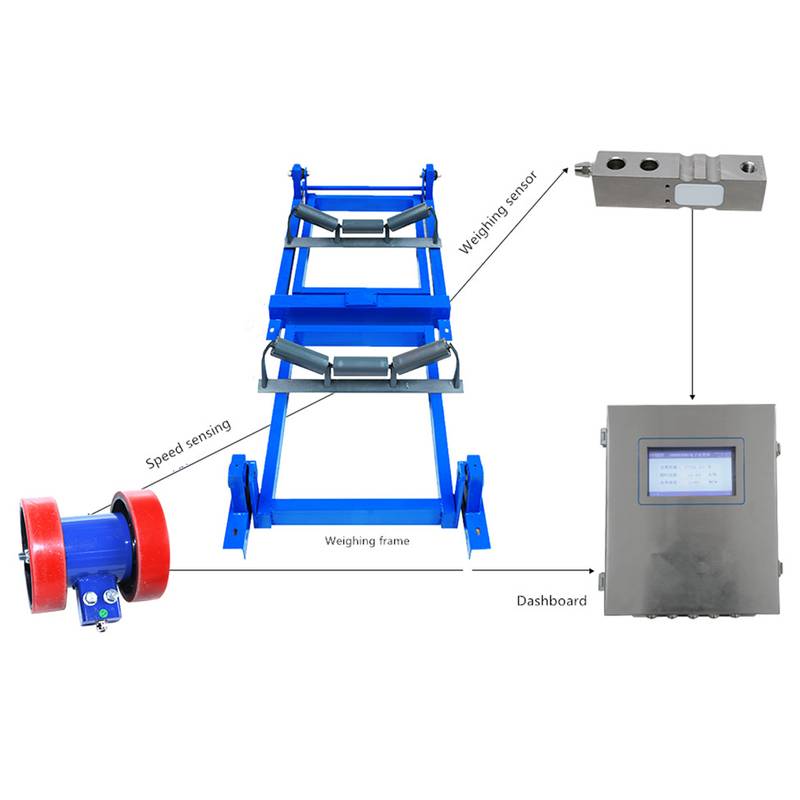

Working principle of belt scale

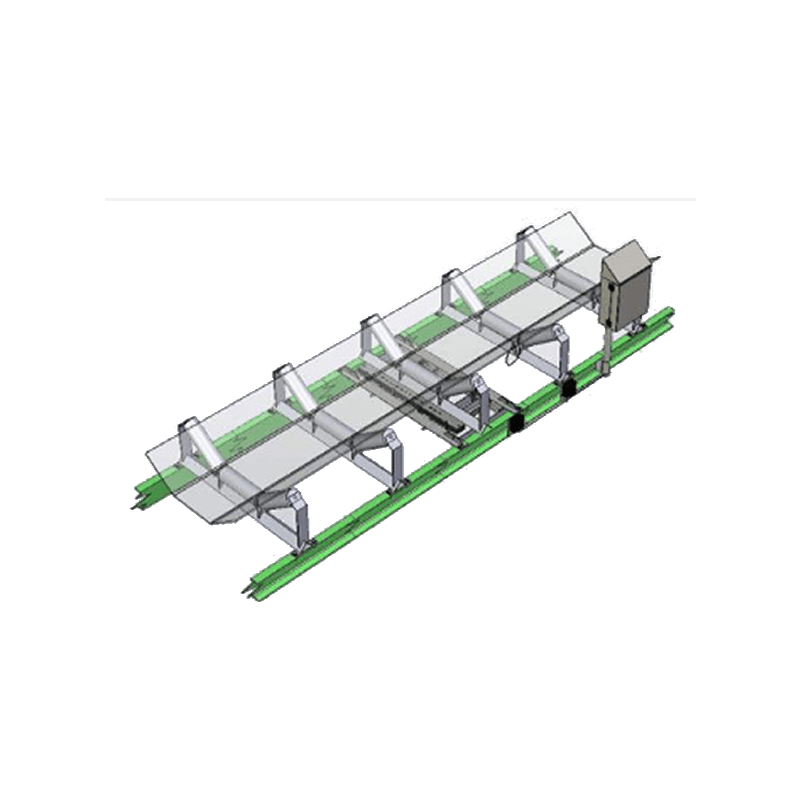

The weighing bridge is generally installed on the conveyor frame, and the material generally acts
on the idler.Through the lever principle, we transfer the weight of the idler to the weighing sensor,
which generates a voltagesignal proportional to the weight of the material;Then the speed sensor is
directly connected to the large-diameter speed measuring drum. When the drum drivesthe belt to
rotate, the speed measuring sensor will generate a series of pulse signals proportional to the speed,
which will be transmitted to the instrument,Through integral calculation, the instantaneous material
mass is obtained, and through continuous cumulative calculation,the material mass on the whole
belt is obtained, so as to achieve accurate dynamic weighing, and finally displayed on then strument.

Scope of application

It is applicable to the measurement and weighing of bulk materials of all materials, such as building
materials, metallurgy,chemical industry, feed, energy, trade, transportation, agriculture and other
industries.Suitable for underground coal mines, power plants, metallurgical workshops, building
materials, chemical plants, ports,docks and other environments.
Block: coal | sand and gravel aggregate | ore | non ferrous metal particles: fertilizer | feed | quartz
sand | grain powder: cement|fly ash | lime powder | iron ore powder flake: straw | wood chips | glass
fiber others: sludge | clay | oil refining residue | hightemperature clinker and other materials.
