Model | ICS-17A Electronic belt scale |
---|---|
Calibration accuracy | ±0.25% |
Weighing range (T/ h) | 1-6000 |
weighing sensor | 4 |
Belt conveyor inclination | ≤17° |
Weighing bridg | Double lever |
Metering idler | 2 groups |
Ics-17a electronic belt scale is a four roller, parallel bar type electronic belt scale, which adopts two pull sensors, and the outer support adopts non friction trunnion fulcrum, which can effectively overcome the influence of eccentric load and slope on accuracy, and has stronger adaptability to the environment
Ics-17A electronic belt scale: Ics-17a electronic belt scale is a four roller, parallel bar type electronic
belt scale,which adopts two pull sensors, and the outer support adopts non friction trunnion fulcrum,
which can effectivelyovercome the influence of eccentric load and slope on accuracy, and has stronger
adaptability to the environment
Product features:

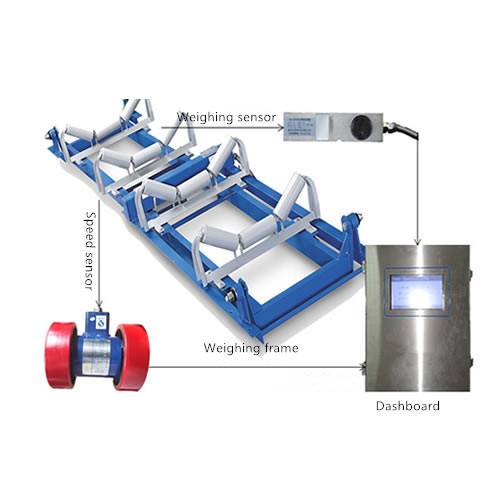

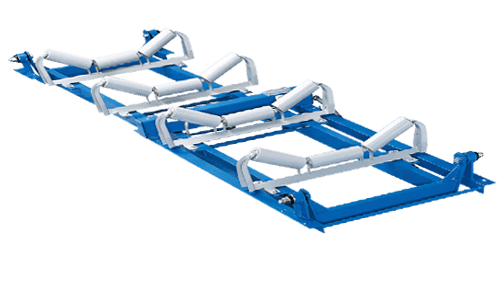

Ics-17 weighing bridge The four roller parallel bar structure design adopts two pull sensors, and the
outer supportadopts non friction trunnion fulcrum, which can effectively overcome the influence of
eccentric load and slope onaccuracy, and has stronger adaptability to the environment.
Stainless steel touch screen weighing instrument :The belt scale instrument adopts 32-bit
180mhz high-speedoperation processing to ensure stable operation and calculation accuracy, and
the 16 bit DA converter ensures moreaccurate output of 4-20mA. This machine has a large storage
space. The storage output of this machine can bequeried on the current day / month, and the historical
data can be stored and queried,
Digital load cell :The self-developed industrial digital weighing sensor strengthens the dynamic
digital filteringfunction and adds the linear compensation function on the basis of the original
generation of digital sensors, so asto overcome the shortcomings of traditional sensors, such as
small output signal, short transmission distance andpoor anti-interference abilit
Speed encoder: The double-sided rubber coating can effectively prevent the belt from slipping.
The carbon steel shellhas good mechanical strength, shielding and sealing. It is suitable for outdoor
installation. The brushless DC pulsegeneratordoes not need adjustment, calibration and maintenance.
The coaxial connection structure more effectivelyensures the speedmeasurement accuracy and greatly
improves the speed measurement accuracy
Product introduction:
Ics-17a electronic belt scale is generally used on the main transport belt, and the inclination angle
of the installedconveyor should be ≤ 17 °.It is widely used in production process monitoring and
quantitative control, such as product loading control.It is applicable to the dangerous occasions
with high explosion-proof requirements such as explosive gas anddust in the coal mine.

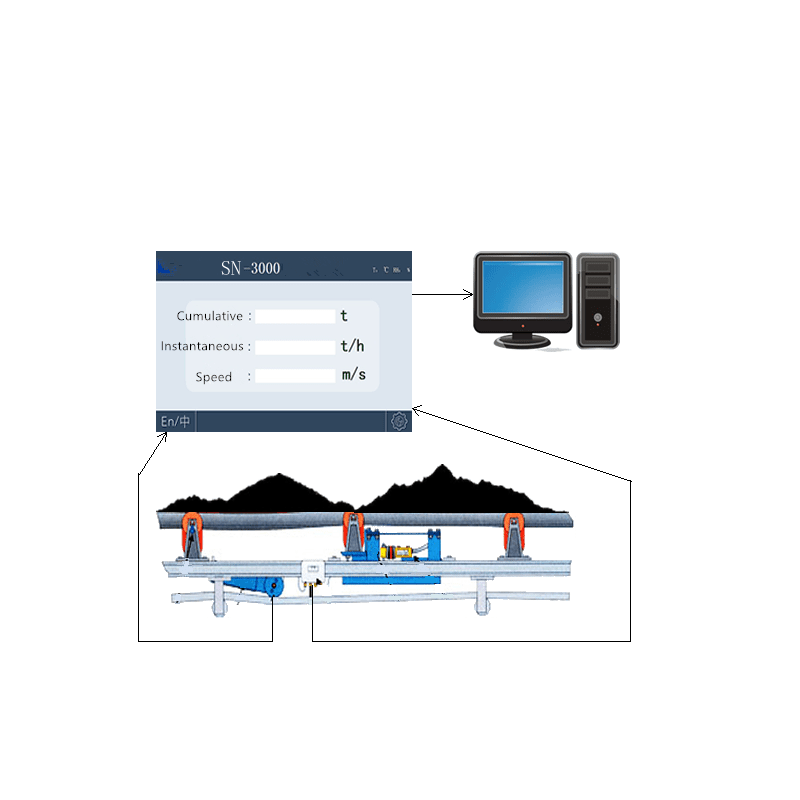

Working principle of belt scale
The weighing bridge is generally installed on the conveyor frame, and the material generally acts
on the idler.Through the lever principle, we transfer the weight of the idler to the weighing sensor,
which generates a voltagesignal proportional to the weight of the material;
Then the speed sensor is directly connected to the large-diameter speed measuring drum. When
the drum drivesthe belt to rotate, the speed measuring sensor will generate a series of pulse
signals proportional to the speed,which will be transmitted to the instrument,Through integral
calculation, the instantaneous material mass is obtained, and through continuous cumulative
calculation,the material mass on the whole belt is obtained, so as to achieve accurate dynamic
weighing, and finally displayed on thenstrument.
Scope of application
It is applicable to the measurement and weighing of bulk materials of all materials, such as building
materials, metallurgy,chemical industry, feed, energy, trade, transportation, agriculture and other
industries.Suitable for underground coal mines, power plants, metallurgical workshops, building
materials, chemical plants, ports,docks and other environments.
Block: coal | sand and gravel aggregate | ore | non ferrous metal particles: fertilizer | feed | quartz sand
| grain powder: cement|fly ash | lime powder | iron ore powder flake: straw | wood chips | glass fiber
others: sludge | clay | oil refining residue | hig temperature clinker and other materials.
Project Case
