ICS-30 Electronic belt scale

Ics-30 electronic belt scale: Ics-30 series belt scale, with dynamic cumulative error less than ± 1.0%, is
usedon site for the main purpose of economy and easy installation. Ics-30 series belt scale is an integral
 unit structure,which is used for weighing materials with low requirements or low cost. Provide instantaneous
 flow andcumulative metering for process control or production monitoring.

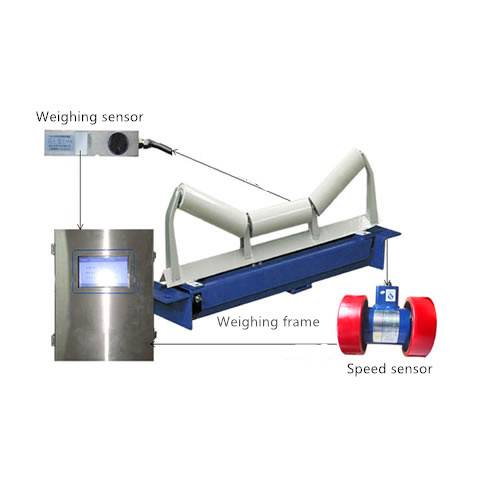

Product features:

Ics-30  weighing bridge：
Ics-30 electronic belt scale is an electronic belt scale with single idler and full suspension structure.
The scale frame has very simple structure, light weight, strong environmental adaptability, simple
and fast installation, and the accuracy can reach ± 1%.

Stainless steel touch screen weighing instrument :The belt scale instrument adopts 32-bit

180mhz high-speedoperation processing to ensure stable operation and calculation accuracy, and

the 16 bit DA converter ensures moreaccurate output of 4-20mA. This machine has a large storage

space. The storage output of this machine can bequeried on the current day / month, and the historical

data can be stored and queried,

 Digital load cell :The self-developed industrial digital weighing sensor strengthens the dynamic

digital filteringfunction and adds the linear compensation function on the basis of the original generation

of digital sensors, so asto overcome the shortcomings of traditional sensors, such as small output signal,

short transmission distance andpoor anti-interference abilit

Speed encoder: The double-sided rubber coating can effectively prevent the belt from slipping. The

carbon steel shellhas good mechanical strength, shielding and sealing. It is suitable for outdoor installation.

The brushless DC pulsegeneratordoes not need adjustment, calibration and maintenance. The coaxial

connection structure more effectivelyensures the speedmeasurement accuracy and greatly improves the

speed measurement accuracy

Product introduction：

Ics-30 series belt scale, with dynamic cumulative error less than ± 1.0%, is used on site for the main purpose
of economy and easy installation.

The dynamic cumulative error is ≤± 0.5%, and the inclination angle of belt conveyor is ≤ 17 °. Ics-30 series
belt scale is an integral unit structure, which is used for weighing materials with low requirements or low cost.
Provide instantaneous flow and cumulative metering for process control or production monitoring.

It is applicable to the site where the environment is relatively harsh, the angle of belt conveyor is large, and
the main purpose is economy and easy installation. It can also be installed on the conveyor whose angle of
conveying equipment changes at any time

Working principle of belt scale

The weighing bridge is generally installed on the conveyor frame, and the material generally acts on the idler.
Through the lever principle, we transfer the weight of the idler to the weighing sensor, which generates a

voltage signal proportional to the weight of the material;

Then the speed sensor is directly connected to the large-diameter speed measuring drum. When the drum

drives the belt to rotate, the speed measuring sensor will generate a series of pulse signals proportional to the

speed, which will be transmitted to the instrument,

Through integral calculation, the instantaneous material mass is obtained, and through continuous cumulative

calculation,the material mass on the whole belt is obtained, so as to achieve accurate dynamic weighing, and

finally displayed on thenstrument.

Scope of application

It is applicable to the measurement and weighing of bulk materials of all materials, such as building

materials, metallurgy,chemical industry, feed, energy, trade, transportation, agriculture and other

industries.Suitable for underground coal mines, power plants, metallurgical workshops, building

materials, chemical plants, ports,docks and other environments.

Block: coal | sand and gravel aggregate | ore | non ferrous metal particles: fertilizer | feed | quartz

sand |grain powder: cement|fly ash | lime powder | iron ore powder flake: straw | wood chips |

glass fiber others:sludge | clay | oil refining residue | high temperature clinker and other materials.
